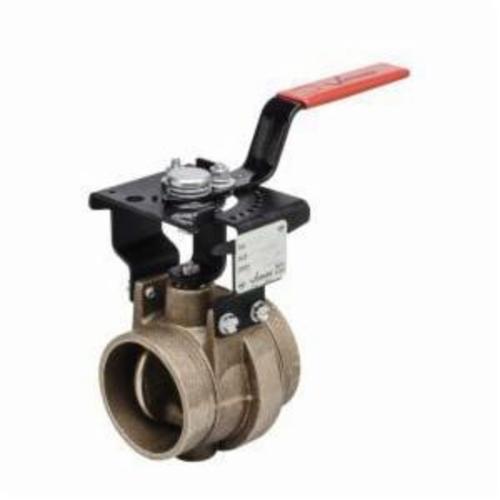

Victaulic V040608NE2 608N Butterfly Valve 4 in
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: V040608NE2_
- MPN: V040608NE2
- UPC: 883481340243
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
- Add To Favorites
Victaulic® Series 608N butterfly valves are designed for pressures ranging from full vacuum to 300 psi/2065 kPa and for bi-directional, dead end services to full working pressure. This grooved end valve is joined to a copper tube system by utilizing Style 607 couplings. The valve features a patented seat design that creates full 360 deg sealing. The pressure-enhanced seat compresses to form a larger sealing area as the pressure increases. The seat design also contributes to low breakaway torque.
Victaulic® Butterfly Valve, Series: 608N, 4 in Nominal, Grooved End Style, -20 to 250 deg F, Media: Water, Lever-Lock Handle Actuator, 4.63 in Inlet to Outlet Length, 5-1/2 in Top to Inlet Center, Brass Body, Aluminum Bronze Disc, 316 Stainless Steel (Stem) Stem & Pin, EPDM Softgoods, 4.63 in L x 4.5 in W x 8.9 in H Dimensions
| Actuator Type | : | Lever-Lock Handle |
| Body Material | : | Brass |
| Dimensions | : | 4.63 in L x 4.5 in W x 8.9 in H |
| Disc Material | : | Aluminum Bronze |
| End Style | : | Grooved |
| Inlet to Outlet Length | : | 4.63 in |
| Media | : | Water |
| Nominal Size | : | 4 in |
| Series | : | 608N |
| Softgoods Material | : | EPDM |
| Stem & Pin Material | : | 316 Stainless Steel (Stem) |
| Temperature Rating | : | -20 to 250 deg F |
| Top to Inlet Center | : | 5-1/2 in |
- Grade "CHP" fluoroelastomer seat
- Body - Brass castings conforming to UNS C87850
- Disc - Aluminum-bronze casting conforming to UNS C95500
- May be specified for cold and hot water service within the specified temperature range plus a variety of dilute acids, air, and many chemical services
