Tylok® SS-4-SMC-2 347484
  1. pin-int

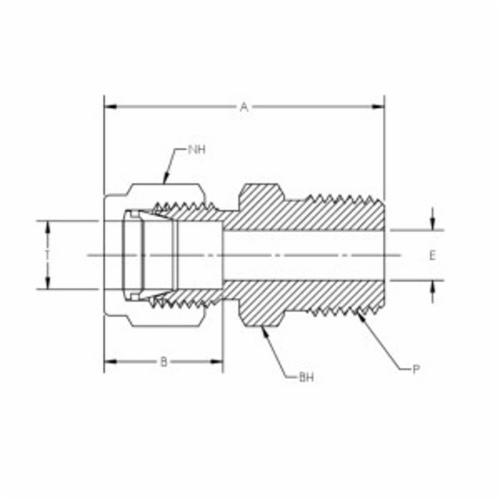

Tylok® CS-Lok® SS-4-SMC-2 SMC Single Ferrule Male Connector, 1/4 x 1/8 in, Tube x MNPT, 316 Stainless Steel, Domestic

Tylok® CS-Lok® SS-4-SMC-2 SMC Single Ferrule Male Connector, 1/4 x 1/8 in, Tube x MNPT, 316 Stainless Steel, Domestic

  • Manufacturer: Tylok International
  • Brand Name: Tylok®
  • Part#: 347484
  • MPN: SS-4-SMC-2
  • UPC: 811731020706
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

CS-Lok® tube fittings is fully interchangeable with Parker CPI™. Although it is always recommended to use all CS-Lok® components, intermixing CS-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CS-Lok® Tube Fittings are made to strict quality control standards and cannot guarantee that of other manufacturers. CS-Lok® Tube Fittings are proudly made in the U.S.A.

Tylok® CS-Lok® Male Connector, Single Ferrule, Series:SMC, Fitting/Connector Type: Connector, 1/4 x 1/8 in Nominal Size, Tube x MNPT, 1/2 in Hex, 1.29 in Length, 316 Stainless Steel, Domestic

Domestic/Import      :      Domestic
End Style      :      Tube x MNPT
Fitting/Connector Type      :      Connector
Hex Size      :      1/2 in
Length      :      1.29 in
Material      :      316 Stainless Steel
Nominal Size      :      1/4 x 1/8 in
Series      :      SMC
Type      :      Single Ferrule
  • Single ferrule swaging action
  • Total component interchangeability
  • More tolerant of vibrations
  • Heat code traceable
  • ASTM material construction
  • 9/16 x 1/2 in nut
  • 1/8-27 NPT pipe thread
  • 90 Rb hardness
  • Interchanges with 4-2 FBZ
