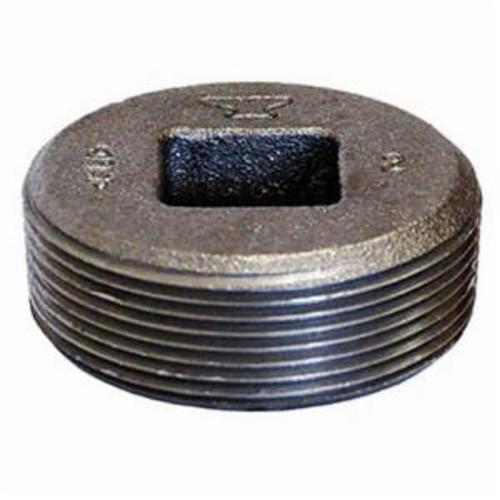

Square Head Countersunk Plug, 2-1/2 in Nominal, MNPT End Style, 125 lb, Cast Iron, Black Oxide, Domestic

Square Head Countersunk Plug, 2-1/2 in Nominal, MNPT End Style, 125 lb, Cast Iron, Black Oxide, Domestic

  • Manufacturer: Approved Vendor
  • Brand Name: Approved Vendor
  • Part#: 39598
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Countersunk Plug, Square Head, Fitting/Connector Type: Plug, 2-1/2 in Nominal, MNPT, SCH 40/STD, 125 lb, 175 psi, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Domestic/Import      :      Domestic
End Style      :      MNPT
Finish      :      Black Oxide
Fitting/Connector Type      :      Plug
Material      :      Cast Iron
Nominal Size      :      2-1/2 in
Pressure Class      :      125 lb
Pressure Rating      :      175 psi
Schedule Rating      :      SCH 40/STD
Series      :      FIG 390CI
Temperature Rating      :      -20 to 150 deg F
Type      :      Square Head
  • 2 1/2 STD BLK MALLEABLE SQUARE COUNTERSUNK PLUG
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Anvil_International_BCSP112_Specification_Sheet.pdf
