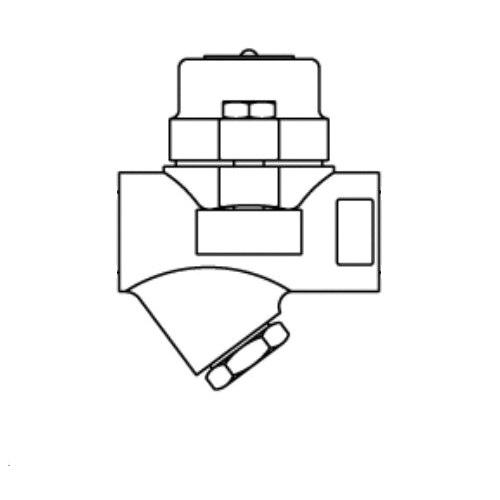

Spirax Sarco 0051451 BPC32 Balanced Pressure Thermostatic Steam Trap
- Manufacturer: Spirax-Sarco Inc
- Brand Name: Spirax Sarco
- Part#: 234872
- MPN: 0051451
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
- Add To Favorites
The standard welded stainless steel element is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 22 degF (12 degC) below saturated steam temperature. The element is resistant to waterhammer, and up to 572 degF (318 degC) steam temperature can be tolerated by this trap.
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, 3/4 in Nominal, NPT, 465 psig Operating, Carbon Steel, 572 deg F Operating, 3.7 in W
| Dimensions | : | 3.7 in W |
| Domestic/Import | : | Domestic |
| End Style | : | NPT |
| Material | : | Carbon Steel |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 465 psig Operating |
| Series | : | BPC32 |
| Temperature Rating | : | 572 deg F Operating |
- Forged steel cover
- Stainless steel internals
- Maximum allowable pressure: 725 psig
- Maximum allowable temperature: 752 deg F
- Designed for a maximum cold hydraulic test pressure of 1088 psig
- 23 deg F below saturated steam temperature
- Horizontal installation
- PN40 body design conditions
- Adjust automatically to varying steam pressures
- Excellent air venting characteristics during plant start-up and during normal operation
- Large discharge capacities for their size
- Robust design of the internals gives a good life expectancy
Specification Sheet
