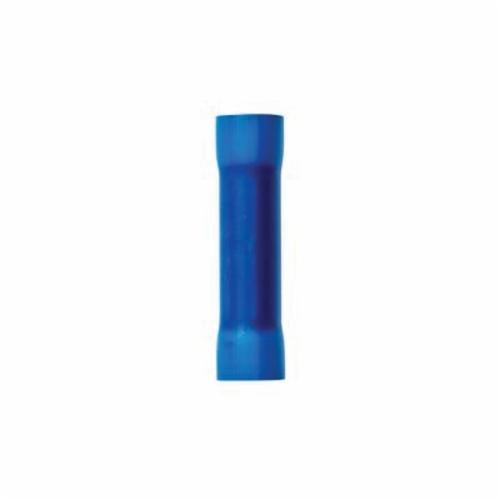

Scotchlok™ 7010351306 Insulated Butt Connector, 6 AWG Conductor, 1.71 in L, Brazed Seam Barrel, Blue
- Manufacturer: 3M
- Brand Name: Scotchlok™
- Part#: 437303
- MPN: 7010351306
- UPC: 051128589915
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: EACH
-
Price:
- Add To Favorites
3M™ Scotchlok™ color-coded butt connector ensures an ideal fit while offering reliable and safe performance.
Scotchlok™, 7010351306, Butt Connector, Insulated, Copper Conductor, 6 AWG Conductor, 1.71 in Length, Brazed Seam Barrel, 0.25 in ID x 0.47 in L Barrel, 600 VAC, Specifications: 0.4 in Dia Max Insulation, 0.05 in THK, -40 to 221 deg F, Blue, Tin Plated
| Barrel Size | : | 0.25 in ID x 0.47 in L |
| Barrel Type | : | Brazed Seam |
| Color | : | Blue |
| Conductor Size | : | 6 AWG |
| Conductor Type | : | Copper |
| Finish | : | Tin Plated |
| Length | : | 1.71 in |
| Material | : | Copper |
| Specifications | : | 0.4 in Dia Max Insulation, 0.05 in THK |
| Temperature Rating | : | -40 to 221 deg F |
| Type | : | Insulated |
| Voltage Rating | : | 600 VAC |
- Built-in wire stop for correct positioning
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Standard but terminal
- Abrasion-resistant, flared, vinyl sleeve insulation ensures easy crimping
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
