Scotchlok™ 7000149312 40100 Corrosion-Resistant Two Hole Lug, 750 kcmil Conductor Aluminum/Copper Conductor, 1/2 in Stud
- Manufacturer: 3M
- Brand Name: Scotchlok™
- Part#: 437637
- MPN: 7000149312
- UPC: 054007137078
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: EACH
-
Price:
- Add To Favorites
3M™ Scotchlok™ 40100 two hole compression lug is color coded for easy identification. The standard barrel ensures a secure fit and offers reliable performance. It has chamfered ends that enable fast, simple conductor insertion. The contact aid in the lug barrel is compatible with poly/EPR insulations. It withstands a maximum temperature of 221 deg f (105 deg C).
CASE OF 6 3M 7000149312 SCOTCHLOK ALUMINUM TWO HOLE LUG 40172 UP TO 35 KV 750 KCMIL YELLOW

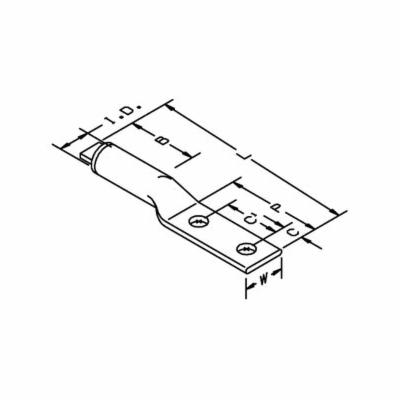

| Barrel Size | : | 1.03 in ID x 3.38 in L |
| Barrel Type | : | Long/Standard |
| Color | : | Yellow |
| Conductor Size | : | 750 kcmil |
| Conductor Type | : | Aluminum/Copper |
| Dimensions | : | 1-1/2 in OD |
| Material | : | Aluminum |
| Overall Length | : | 8-1/4 in |
| Series | : | 40100 |
| Specifications | : | 0.53 in Center of Hole to End of Pad |
| Stud Size | : | 1/2 in |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 3.62 in L x 1.75 in W |
| Type | : | 2-Hole Corrosion-Resistant |
| Voltage Rating | : | 35 kV |
- Barrel sealing caps are color coded to help to indicate the wire guage
- Standard barrel ensures a secure fit and offers reliable performance
- Made of aluminum for good conductivity and tin plating for corrosion resistance
Specification Sheet
