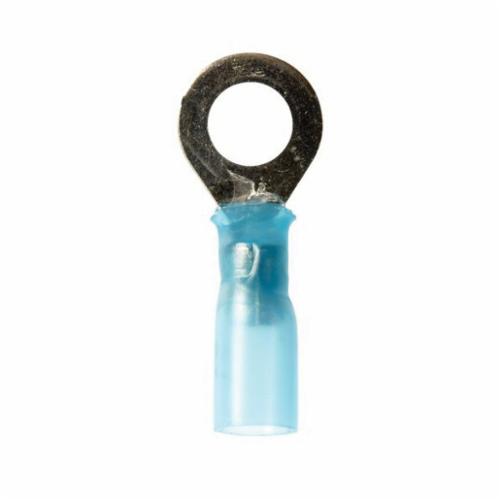

Scotchlok™ 7000133388 Insulated Terminal, 16 to 14 AWG Conductor, 1.1 in L, Brazed Seam Barrel, Electrolytic Copper, Blue
- Manufacturer: 3M
- Brand Name: Scotchlok™
- Part#: 437578
- MPN: 7000133388
- UPC: 051128589038
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: EACH
-
Price:
- Add To Favorites
3M™ Scotchlok™ large ring tongue terminal ensures an ideal fit while offering reliable and safe performance.
Scotchlok™, 7000133388, Terminal, Insulated, 16 to 14 AWG Conductor, 1/4 in Stud, 1.1 in Length, Brazed Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Ring Tongue, 0.47 in W x 0.03 in THK Tongue, 600/1000 VAC, Specifications: 0.26 in Clearance, 221 deg F, Electrolytic Copper, Tin Plated, Blue
| Barrel Size | : | 0.09 in ID x 0.25 in L |
| Barrel Type | : | Brazed Seam |
| Color | : | Blue |
| Conductor Size | : | 16 to 14 AWG |
| Finish | : | Tin Plated |
| Length | : | 1.1 in |
| Material | : | Electrolytic Copper |
| Specifications | : | 0.26 in Clearance |
| Stud Size | : | 1/4 in |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 0.47 in W x 0.03 in THK |
| Tongue Type | : | Ring |
| Type | : | Heat Shrinkable Insulated Standard |
| Voltage Rating | : | 600/1000 VAC |
- Crimp termination
- Free hanging (in-line) mounting
- Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a maximum temperature of 221 deg f (105 deg c)
