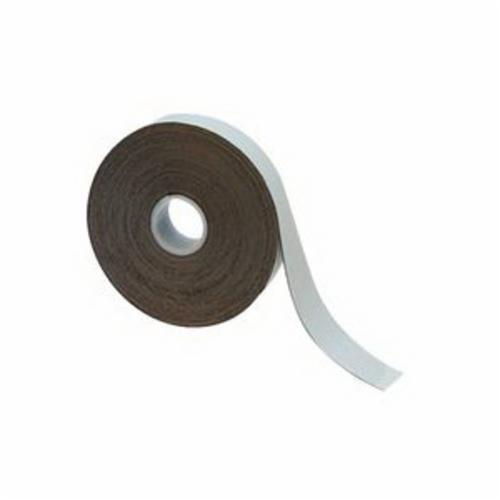

Scotch® 7000138512 Splicing Tape, 30 ft L x 2 in W, 30 mil THK, Rubber Resin Adhesive, Black

Scotch® rubber splicing tape 23 is a highly conformable, self-fusing Ethylene Propylene rubber (EPR), high-insulating voltage tape. Scotch® 23 has a "snakeskin" liner that is easily removed as the tape is applied. Scotch® electrical tape 23 is a highly conformable, self-fusing Ethylene Propylene rubber based high-insulating voltage tape. It is without halogen, it resists in the UV and ozone and is not vulcanized. It is compatible with all the synthetic insulations cables and with the paper insulations cables with migrant material. The turns of the tape weld together in an homogeneous form after application.

Scotch®, 7000138512, Splicing Tape, 30 ft Length, 2 in Width, 30 mil Thickness, Black, Rubber Resin Adhesive, 8 in-lb Tensile Strength, 194 deg F Maximum Operating, Specifications Met: ASTM D4388 Type 1/2/3

• Physical and electrical properties are unaffected by the degree of stretch
• A special polyester liner which will not stick to the tape upon unwind
• Compatible with all solid dielectric cable insulation: polyethylene (high and low density), cross linked polyethylene (xlp), polyvinyl chloride (pace), butyl rubber, ethylene propylene rubber (pace), oil based rubber
• Conformable, made with highly conformable ethylene rubber (epr)
• Primary insulation use, used for primary insulation for cable splice and termination applications up to 69kv (astm d4388, type iii)
• Easy to handle, unwinds without sticking due to the polyethylene liner
• High heat use - operating temperature rated to 194 deg f (90 deg c) with an emergency overload rating to 266 deg f (130 deg c)

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4cfd1fa6ba054c1fae9ab88b44c2cba0b951d30ded7112c241bcd31a06b5555b.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_89b5e4a44c2abe2673d2393a47343cf08fb17caf19805501c0a7d2a3fcca1b84.pdf
