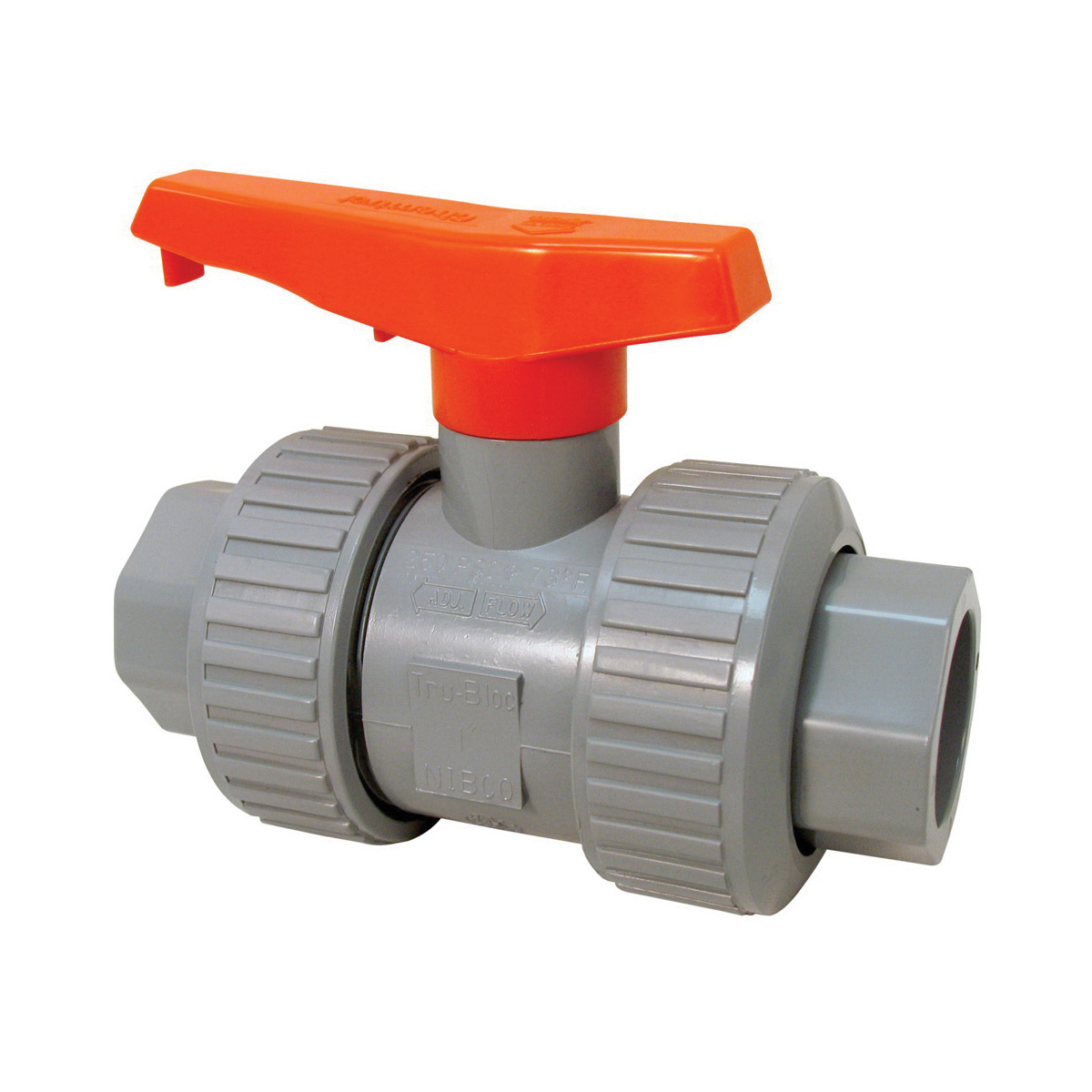

Nibco U51TB-V Ball Valve, 1-1/4 in Nominal, Socket x FNPT End Style, PVC

The original Chemtrol® True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. Tru-Bloc® advances the True Union concept with the self-adjusting energizer O-ring. The valve can be easily joined with the universal socket and threaded end connections. Please refer to Chemtrol® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Corzan® CPVC SCH 80/XH thermoplastics demonstrate excellent mechanical strength over broad temperature range, outstanding underground performance and superior hydraulics. Chemtrol® Corzan® CPVC valves are lightweight, easy to install, maintenance-free and will not rust, scale, pit or corrode. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol® ball valves are backed by a 1 year limited warranty. Because Chemtrol® is a NIBCO® brand the flow-control valves are unsurpassed in quality, performance and longevity.

Chemtrol® Tru-Bloc® Ball Valve, Series: U51TB-V, 1-1/4 in Nominal, Socket x FNPT, 250 psi, 210 deg F, Full Port, Media: Water, 1-1/4 in Orifice, Ergonomic Handle Actuator, PVC Ball, 3.91 in Top to Inlet Center, PVC Body, PVC/PTFE Trim, FKM, Domestic

• Valve pressure rating 250 psi at 73 deg F water non-shock
• FKM O-ring
• Orange handle
• Do not test or use with compressed air or other gases
• PVC stem and PTFE seat

• SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_CA16300_SDS.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_MA606AF_Specification_Sheet.pdf
• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_MB819AB_Warranty.pdf
