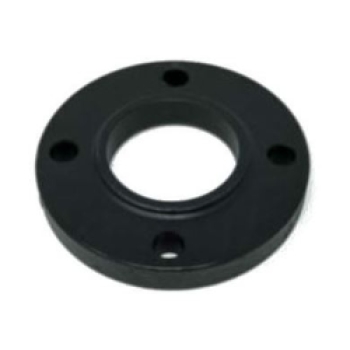

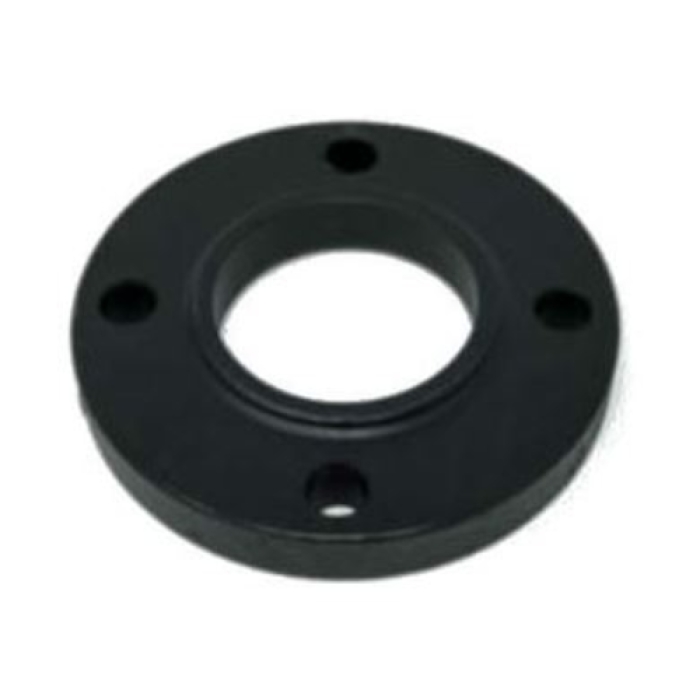

Lap Joint Flange, 2 in, Carbon Steel, 600 lb, Domestic
- Manufacturer: Approved Vendor
- Brand Name: Approved Vendor
- Part#: 380772
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
- Add To Favorites
Lap Joint Flange, 2 in Nominal, 1 in Thickness, 5 in Bolt Circle, 8 Bolt Holes, 3/4 in, 6-1/2 in Outside Dia, 1480 psig, 600 lb, -20 to 100 deg F, 3.31 in Hub Dia, 1.44 in Length Through Hub, Carbon Steel, Domestic
| Bolt Circle Diameter | : | 5 in |
| Bolt Hole Size | : | 3/4 in |
| Domestic/Import | : | Domestic |
| Hub Diameter | : | 3.31 in |
| Length Through Hub | : | 1.44 in |
| Material | : | Carbon Steel |
| Nominal Size | : | 2 in |
| Number of Bolt Holes | : | 8 |
| Outside Diameter | : | 6-1/2 in |
| Pressure Class | : | 600 lb |
| Pressure Rating | : | 1480 psig |
| Temperature Rating | : | -20 to 100 deg F |
| Thickness | : | 1 in |
- 2 600 LAP JOINT FLANGE A105N DOM
