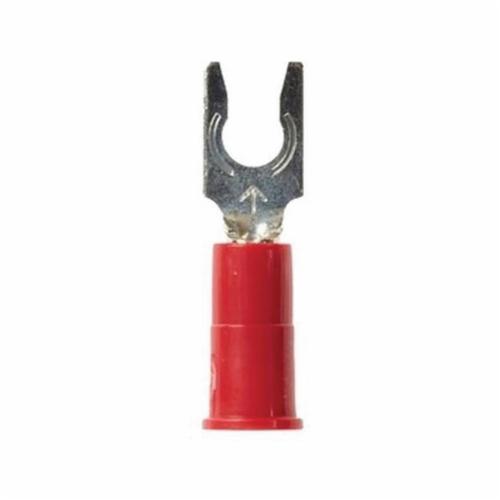

Highland™ 7100026994 Insulated Locking Fork, 22 to 18 AWG Conductor, 0.88 in L, Butted Seam Barrel, Electrolytic Copper/Vinyl, Red

3M™ Highland™ locking fork terminal is color coded for quick and easy identification of the wire size required. It has a butted seam barrel that is covered by a funnel designed, rigid molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl sleeve insulation ensures easy crimping.

Highland™, 7100026994, Locking Fork, Insulated, 22 to 18 AWG Conductor, #8 Stud, 0.88 in Length, Butted Seam Barrel, 0.07 in ID x 0.25 in L Barrel, Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 to 1000 VAC, Specifications: 0.145 in Dia Max Insulation, 1/4 in Clearance, -40 to 221 deg F, Electrolytic Copper/Vinyl, Tin Plated, Red

• Abrasion and corrosion-resistant, flared, vinyl sleeve insulation ensures easy crimping
• Crimp termination
• Free hanging (in-line) mounting
• 0.34 in maximum lock width
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Spring-like tongue firmly fits around the stud

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4ec3feec781f101a5bda3a606d6a377f31835961c40834b72b5ecc212a188092.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f65570324991ae434ea094afeda0f11032ed4e8a8315b7ab7979f75060e63235.pdf
