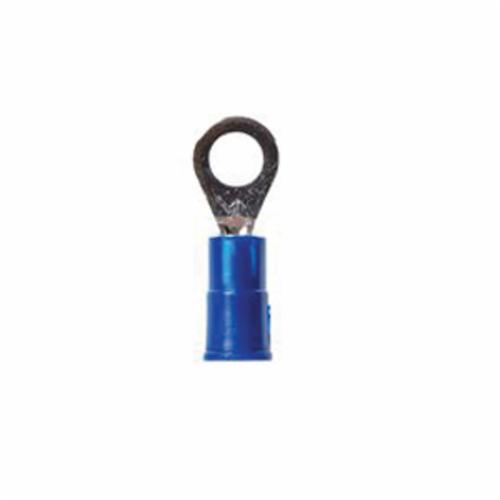

Highland™ 7000133678 Insulated Terminal, 16 to 14 AWG Conductor, 0.8 in L, Butted Seam Barrel, Vinyl, Blue
- Manufacturer: 3M
- Brand Name: Highland™
- Part#: 436992
- MPN: 7000133678
- UPC: 051128600412
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: BAG
-
Price:
- Add To Favorites
3M™ Highland™ ring tongue terminal ensures an ideal fit while offering reliable and safe performance.
Highland™, 7000133678, Terminal, Insulated, 16 to 14 AWG Conductor, #6 Stud, 0.8 in Length, Butted Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600/1000 VAC, Specifications: 0.17 in Dia Max Insulation, 0.22 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Blue
| Barrel Size | : | 0.09 in ID x 0.25 in L |
| Barrel Type | : | Butted Seam |
| Color | : | Blue |
| Conductor Size | : | 16 to 14 AWG |
| Finish | : | Tin Plated |
| Length | : | 0.8 in |
| Material | : | Vinyl |
| Specifications | : | 0.17 in Dia Max Insulation, 0.22 in Clearance |
| Stud Size | : | #6 |
| Temperature Rating | : | -40 to 221 deg F |
| Tongue Size | : | 0.25 in W x 0.03 in THK |
| Tongue Type | : | Ring |
| Type | : | Insulated Standard |
| Voltage Rating | : | 600/1000 VAC |
- Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
- Crimp termination
- Free hanging (in-line) mounting
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Standard-style ring tongue fits around the stud
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
