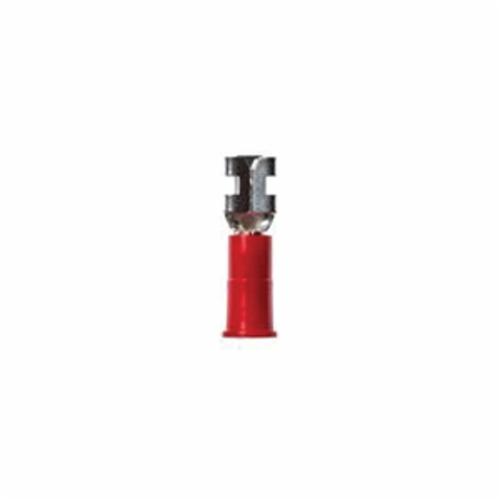

Highland™ 7000133664 Insulated Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Vinyl, Red, Insulated
- Manufacturer: 3M
- Brand Name: Highland™
- Part#: 436978
- MPN: 7000133664
- UPC: 051128600085
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: BAG
-
Price:
- Add To Favorites
3M™ Highland™ color coded standard female disconnect terminal attaches to the mating part with a tongue that slips over-the male tab. It has a butted seam barrel that is covered by a funnel designed, rigid molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl sleeve insulation is abrasion-resistant and flared to ensure easy crimping.
Highland™, 7000133664, Disconnect Terminal, Insulated, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 VAC, Specifications: 0.145 in Dia Max Insulation, 0.08 in ID x 0.25 in L Barrel, -40 to 221 deg F, Vinyl, Red, Tin Plated, 0.87 in L Dimensions, Insulated: Insulated
| Barrel Type | : | Butted Seam |
| Color | : | Red |
| Conductor Size | : | 22 to 18 AWG |
| Dimensions | : | 0.87 in L |
| Finish | : | Tin Plated |
| Insulated | : | Insulated |
| Material | : | Vinyl |
| Specifications | : | 0.145 in Dia Max Insulation, 0.08 in ID x 0.25 in L Barrel |
| Tab Size | : | 0.25 in W x 0.032 in THK |
| Temperature Rating | : | -40 to 221 deg F |
| Terminal Type | : | Crimp |
| Type | : | Insulated Standard |
| Voltage Rating | : | 600/1000 VAC |
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- Mates with 1/4 in wide male tab
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
