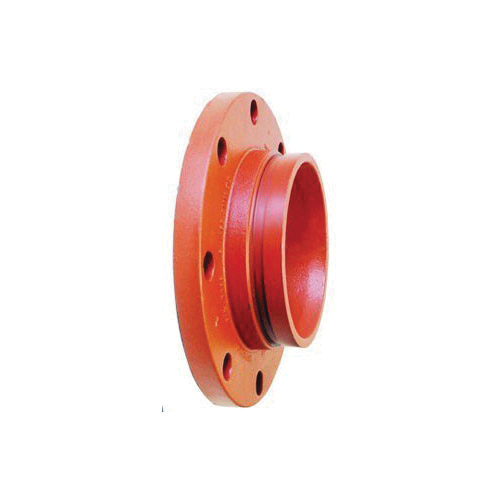

Gruvlok® 0390202000 FIG 7788 Adapter, 2 in, Flanged x Grooved, 300 psi, 125/150 lb, Ductile Iron

Gruvlok® 0390202000 FIG 7788 Adapter, 2 in, Flanged x Grooved, 300 psi, 125/150 lb, Ductile Iron

  • Manufacturer: ASC Engineered Solutions
  • Brand Name: Gruvlok®
  • Part#: 257305
  • MPN: 0390202000
  • UPC: 690291060786
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Gruvlok® FIG 7788 flange adapter allows for direct connection of class 125 or class 150 flanged components to a grooved piping system. The Gruvlok® flange adapter provides an alternative method of connecting to flanged components than the traditional FIG 7012 Gruvlok® flange. The Gruvlok® flange adapter provides a raised serrated face flange connection with a shorter overall length than Anvil®'s FIG 7084 Flange x Groove Nipple.

Gruvlok® Adapter, Series: FIG 7788, 2 in Nominal, Flanged x Grooved, 11/16 in Thickness, 125/150 lb, 300 psi, Ductile Iron, Rust Inhibiting Painted, Orange, 2-3/8 in OD, Domestic

Color      :      Orange
Dimensions      :      2-3/8 in OD
Domestic/Import      :      Domestic
End Style      :      Flanged x Grooved
Finish      :      Rust Inhibiting Painted
Material      :      Ductile Iron
Nominal Size      :      2 in
Pressure Class      :      125/150 lb
Pressure Rating      :      300 psi
Series      :      FIG 7788
Thickness      :      11/16 in
  • Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
  • 8 in,10 in and 12 in flange adapters have a machined raise face, 2 in through 6 in flange adapters have a cast raised face
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gruvlok_0390202000_Specification_Sheet.pdf
