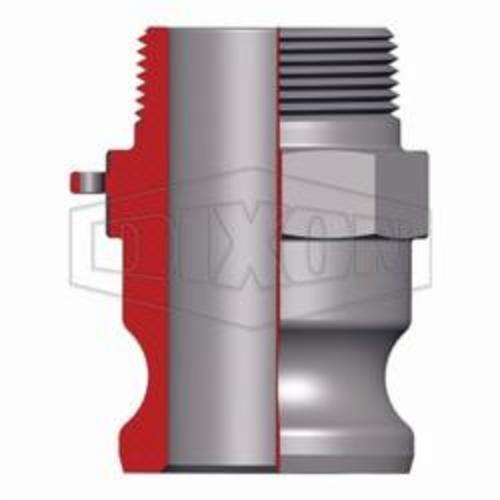

Dixon 100FAL Cam and Groove Adapter 1 in Aluminum

Dixon 100FAL Cam and Groove Adapter 1 in Aluminum

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon Valve & Coupling
  • Part#: 8050
  • MPN: 100FAL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Dixon® Cam and Groove Adapter, Type F, Series: Boss-Lock™, Fitting/Connector Type: Adapter, 1 in Nominal Size, Male Adapter x MNPT, 1-1/2 in A/F Hex, 2-15/16 in Length, 250 psi, Aluminum, Domestic

Domestic/Import      :      Domestic
End Style      :      Male Adapter x MNPT
Fitting/Connector Type      :      Adapter
Hex Size      :      1-1/2 in A/F
Length      :      2-15/16 in
Material      :      Aluminum
Nominal Size      :      1 in
Pressure Rating      :      250 psi
Series      :      Boss-Lock™
Type      :      Type F
  • Pressure rating is based on the seal of the mating part
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Wash hands after handling
