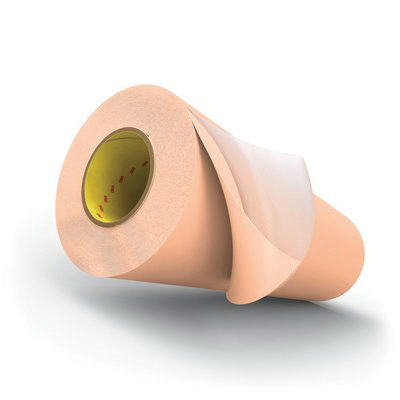

Cushion-Mount™ Plus 7100010313 Plate Mounting Tape, 25 yd L x 18 in W, 17 mil THK, 2 mil Differential Acrylate Adhesive, Polyethylene Foam Backing, Tan

Our 3M™ Cushion-Mount™ plus plate mounting tape E1115H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This tan foam mounting tape provides high quality process print. 3M™ Cushion-Mount™ plus plate mounting tape E1115H is a tan foam tape that provides high quality process print. It has the air release feature that allows for bubble free mounting. This tape has excellent resistance to lifting on press allowing for clean plate removal. Mounting photopolymer plates to flexographic printing cylinders and sleeves. Used in process printing. 3M™ flexographic plate mounting tapes are highly engineered to provide very tight caliper tolerance to allow printers to use tape from different manufacturing lots and keep tight print registration. The compressible foam will withstand long and high speed print runs. This cushion tape is manufactured for 15 mil applications. It is constructed with engineered acrylic adhesives. The adhesive on the linered (plate) side of the tape is designed for mounting of photopolymer plates. The adhesive on the non-linered (sleeve/cylinder) side is designed for mounting to flexographic printing cylinders or sleeves, providing easy application at mounting and clean removal when demounting. 3M™ air release liners have a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique micro-channels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting. For decades, 3M™ products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done.

Cushion-Mount™ Plus, 7100010313, Plate Mounting Tape, 25 yd Length, 18 in Width, 17 mil Thickness, 4.5 mil Polycoated Polyester Liner, Tan, 2 mil Differential Acrylate Adhesive, Polyethylene Foam Backing, 120 deg F Maximum Operating

• Provides high quality process with halftone dots
• Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
• Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
• Grooves in the adhesive are created by a cross hatch pattern from the release liner
• 0.015 in (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
• Tan foam color indicates the process printing density foam

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cushion_Mount_Plus_021200_42662_Catalog.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cushion_Mount_Plus_021200_96103_Specification_Sheet.pdf
• VIDEO LINK http://images.salsify.com/video/upload/s--G_4-D2xb--/e34ba34d9cf2910249e89de9901ea4f0b6fada3a.mp4
