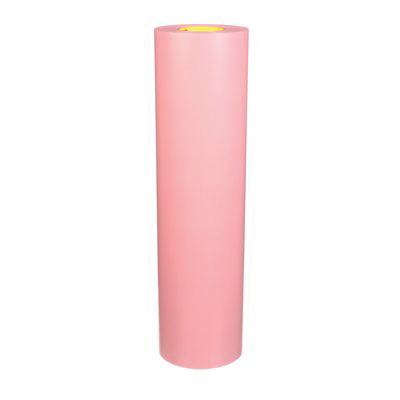

Cushion-Mount™ Plus 7000047428 Plate Mounting Tape, 25 yd L x 18 in W, 22 mil THK, 2 mil Differential Acrylate Adhesive, Polyethylene Foam Backing, Pink

Our 3M™ Cushion-Mount™ plus plate mounting tape E1920HS with easy mount adhesive is designed for mounting flexographic print plates to urethane sleeves. This pink 0.02 in (0.51 mm) double coated foam mounting tape provides high quality light medium combination print. 3M™ Cushion-Mount™ plus plate mounting tape E1920HS is a pink foam tape that provides high quality combination print. This is the light medium tape for combination print. It has the air release feature that allows for bubble free mounting. This tape has excellent resistance to lifting on press allowing for clean plate removal. Mounting photopolymer plates to flexographic printing urethane sleeves. Used in combination, process and solid printing processes. 3M™ flexographic plate mounting tapes are highly engineered to provide very tight caliper tolerance to allow printers to use tape from different manufacturing lots and keep tight print registration. The compressible foam will withstand long and high speed print runs. This cushion tape is manufactured for 20 mil applications. It is constructed with engineered acrylic adhesives. The adhesive on the linered (plate) side of the tape is designed for mounting of photopolymer plates. The adhesive on the non-linered (sleeve) side is designed for mounting to flexographic printing urethane sleeves, providing easy application at mounting and clean removal when demounting. 3M™ air release liners have a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique micro-channels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting. For decades, 3M™ products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done.

Cushion-Mount™ Plus, 7000047428, Plate Mounting Tape, 25 yd Length, 18 in Width, 22 mil Thickness, 4.5 mil Polycoated Polyester Liner, Pink, 2 mil Differential Acrylate Adhesive, Polyethylene Foam Backing, 120 deg F Maximum Operating

• Light medium density foam is ideal for combinations of solids and process with halftone dots
• Securely bonds flexographic photopolymer plates to urethane sleeves to prevent plate edge lifting
• Higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
• Flexographic printing, flexographic printers
• Cross hatch pattern from the release liner creates grooves in the adhesive to release air
• Air release feature helps eliminate air bubbles under plates
• Tape also removes cleanly from the urethane sleeve
• Plate demounts from the double coated cushioned tape without adhesive residue

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cushion_Mount_Plus_021200_41022_Catalog.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cushion_Mount_Plus_021200_96103_Specification_Sheet.pdf
