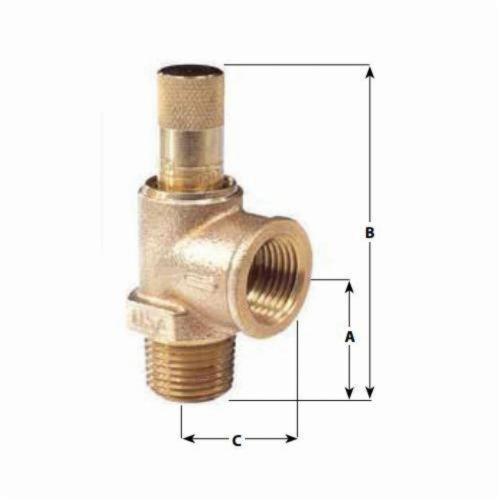

Apollo™ 1650301 16-503 Liquid Relief Valve, 1/2 in Nominal, Male x Female End Style, 100 psi Pressure, Bronze Body

Apollo™ 1650301 16-503 Liquid Relief Valve, 1/2 in Nominal, Male x Female End Style, 100 psi Pressure, Bronze Body

  • Manufacturer: Apollo Conbraco
  • Brand Name: Apollo™
  • Part#: 156285
  • MPN: 1650301
  • UPC: 670750500930
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Calibrated pressure relief valve allows for in-line pressure adjustments without the need for a pressure gauge. Provides static overpressure protection for liquid filled systems such as well pumps, tanks, fire protection systems.

Apollo™ Liquid Relief Valve, Series: 16-503, 1/2 in Nominal, Male x Female, 100 psi, 200 deg F, Media: Liquid, Bronze Body, Silicon Soft Seat/EPDM Cap Seal Softgoods

Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      MNPT x FNPT
Media      :      Liquid
Nominal Size      :      1/2 in
Pressure Rating      :      100 psi
Series      :      16-503
Softgoods Material      :      Silicon Soft Seat/EPDM Cap Seal
Temperature Rating      :      200 deg F
Type      :      General Purpose
  • Choice of 1/2 in or 3/4 in inlet connection
  • Factory preset at 100 psi
  • Pressure range 50 to 175 psi, calibrated in 25 psi increments
  • Cast bronze body, stainless steel spring
  • Silicone soft seat, EPDM cap seal
  • Maximum recommended service temperature 200 deg F
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Apollo_1650101_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Apollo_1650101_Specification_Sheet.pdf
