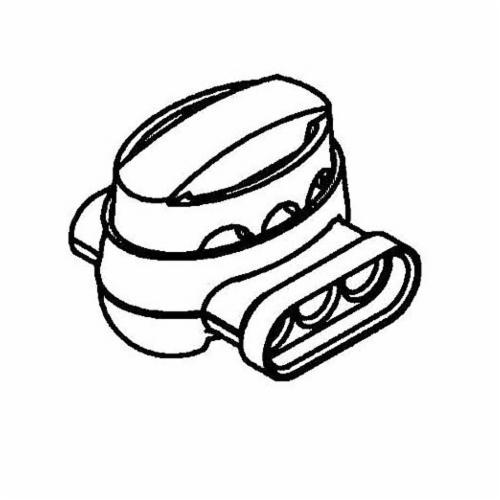

3M™ 7100175087 314 Flame-Retardant Pigtail Displacement Connector, 22 to 14 AWG Wire Solid/Stranded/Tinned/Untinned Copper Wire, Fully Insulated Insulation, Nylon
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437253
- MPN: 7100175087
- UPC: 054007092322
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: EACH
-
Price:
- Add To Favorites
3M™ Scotchlok™ insulation displacement connector 314 is 600 V rated for building wire and 1000 V rated for signs, fixtures and luminaires. It withstands temperatures of 221 deg F (105 deg C).
3M™, 7100175087, Displacement Connector, Flame-Retardant Pigtail, Series: 314, Solid/Stranded/Tinned/Untinned Copper Wire, 22 to 14 AWG Wire, Fully Insulated Insulation, 600 VAC, Specifications: 0.15 in OD Max Insulation, 221 deg F, Nylon, White, TiN Coated, 0.02 in THK Dimensions
| Color | : | White |
| Dimensions | : | 0.02 in THK |
| Finish | : | TiN Coated |
| Insulation Type | : | Fully Insulated |
| Material | : | Nylon |
| Series | : | 314 |
| Specifications | : | 0.15 in OD Max Insulation |
| Temperature Rating | : | 221 deg F |
| Type | : | Flame-Retardant Pigtail |
| Voltage Rating | : | 600 VAC |
| Wire Size | : | 22 to 14 AWG |
| Wire Type | : | Solid/Stranded/Tinned/Untinned Copper |
- E-9bm recommended crimping tool
- Brass u-contact
- Accommodates a wire range of 1,5 - 2,5 mm2 solid or stranded
Specification Sheet
