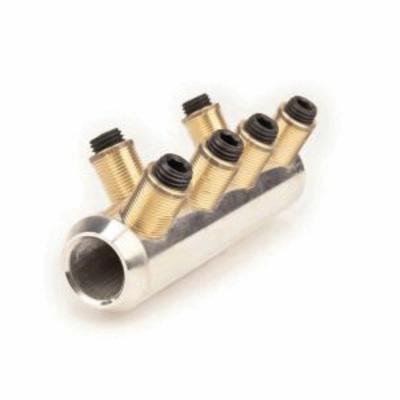

3M™ 7100171978 QCI In-Line Shearbolt Connector, 2 AWG to 250 kcmil Conductor Aluminum/Copper Conductor
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437711
- MPN: 7100171978
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: EACH
-
Price:
- Add To Favorites
3M™ mechanical shear bolt connectors, QCI series are designed to cover a wide-range of conductor sizes from 2 AWG to 1250 kcmil. This shear bolt connector design provides excellent performance and features not found in many other shear bolt connectors. No dies are needed for installation: following cable preparation, simply slide the connector over-the conductor and tighten the bolts until they shear. The QCI connectors are designed to connect either aluminum and/or copper conductors.
CASE OF 3 3M 7100171978 SHEARBOLT CONNECTOR QCI 2-250 2 AWG/250 KCMIL
| Conductor Size | : | 2 AWG to 250 kcmil |
| Conductor Type | : | Aluminum/Copper |
| Dimensions | : | 4.41 in L |
| Finish | : | Tin Plated |
| Material | : | Aluminum |
| Series | : | QCI |
| Temperature Rating | : | 221 deg F |
| Type | : | In-Line |
| Voltage Rating | : | 35 kV |
- Greater contact force versus standard shear bolt connectors
- Sized for american wire gauge conductors
- 1.1 in od
- 0.64 inchside diameter
- Built-in center stop enables correct positioning
- Stepless shearbolt barrel and contact pad ensures optimun contract pressure for reliable performance and mechanical pull-out strength
- Accommodates wire size of 1/0 awg to 350 kcmil (stranded)
- Made of aluminum for good conductivity and has corrosion-resistant tin plating
