3M™ 7100056041 DBO/B-6 Direct Bury Flame Retardant Splice Kit, 600 VAC, 18 to 10 AWG Conductor, Polypropylene

3M™ 7100056041 DBO/B-6 Direct Bury Flame Retardant Splice Kit, 600 VAC, 18 to 10 AWG Conductor, Polypropylene

  • Manufacturer: 3M
  • Brand Name: 3M™
  • Part#: 437833
  • MPN: 7100056041
  • UPC: 051128590751
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

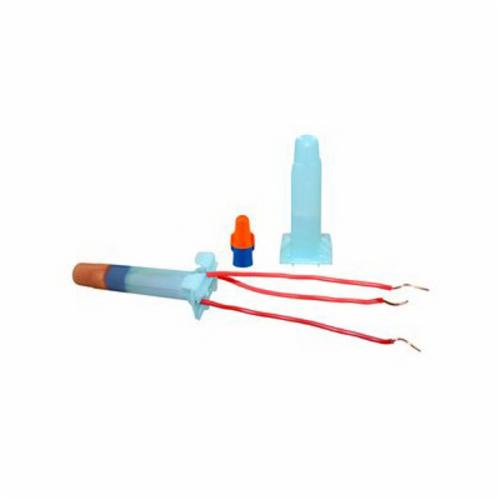

3M™ direct bury splice kits combine the quick, reliable connection of a 3M™ performance Plus™ wire connector with the moisture resistance of a high impact, UV-resistant tube prefilled with moisture-resistant grease. It is UL listed for 600 volts in direct bury applications.

3M™, 7100056041, Splice Kit, Direct Bury Flame Retardant, Series: DBO/B-6, 600 VAC, 18 to 10 AWG Conductor, -40 to 221 deg F, Polypropylene, Blue/Orange, 13 in L x 7.6 in W Dimensions

Color      :      Blue/Orange
Conductor Size      :      18 to 10 AWG
Dimensions      :      13 in L x 7.6 in W
Material      :      Polypropylene
Series      :      DBO/B-6
Temperature Rating      :      -40 to 221 deg F
Type      :      Direct Bury Flame-Retardant
Voltage Rating      :      600 VAC
  • Rated for applications up to 600V maximum operating temperature of 221f / 105c
  • For industrial/occupational use only
  • Not for consumer sale or use
  • Splice kit electrically connects 2 or more pre-stripped 18-12 awg copper wires
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3719f5ed258cfda50d8f3c63a22987c6ff9d207d13b6f6bdcdad2c2898937709.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6d0e97c1a42e03d8ed1e77ea8c58f31c134200ae242f1969a2be4bea6ca4aafe.pdf
