3M™ 7100007449 72-N Non-Re-Enterable Resin Splice Kit, 1 kV, 1/2 to 1 in Dia Cable, 22 AWG Conductor, 10.438 in L Splice
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437829
- MPN: 7100007449
- UPC: 054007106258
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: 1/KIT
-
Price:
- Add To Favorites
3M™ Scotchcast™ 72-B series in-line splice kit helps in sealing collars or splice body ends and the jumper wire with clips offers solderless shield continuity on shielded cables.

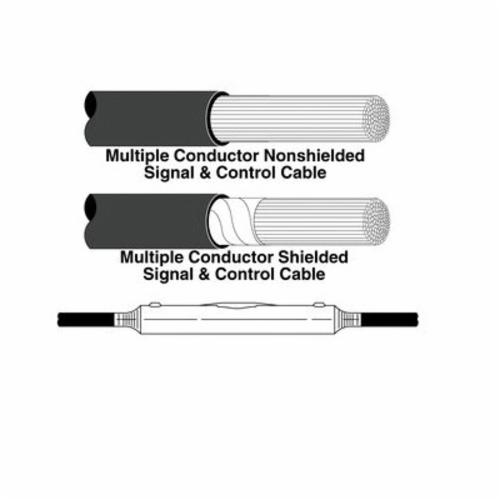

3M™, 7100007449, Splice Kit, Non-Re-Enterable Resin, Series: 72-N, 1 kV, Control/Non-Shielded/Shielded Cable, 1/2 to 1 in Diameter Cable, 22 AWG Conductor, 1/2 to 1 in OD Insulation, 10.438 in Splice Length, In-Line Connector, 90 to 130 deg C, 1-15/16 in Dia Dimensions
| Cable Diameter | : | 1/2 to 1 in |
| Cable Type | : | Control/Non-Shielded/Shielded |
| Conductor Size | : | 22 AWG |
| Connector Type | : | In-Line |
| Dimensions | : | 1-15/16 in Dia |
| Insulation Size | : | 1/2 to 1 in OD |
| Series | : | 72-N |
| Splice Length | : | 10.438 in |
| Temperature Rating | : | 90 to 130 deg C |
| Type | : | Non-Re-Enterable Resin |
| Voltage Rating | : | 1 kV |
- Convenient closed mixing pouch container permits clean, easy compound handling
- The polypropylene mold has a built-in spacer web that automatically offers cable centering and compound coverage
- Fits unshielded construction of plastic or rubber-jacketed cables
- 600 psi tensile strength
- 150% elongation
Specification Sheet
