3M™ 7010401345 Fire Barrier Plug, ANSI Specified, ASTM E814, E84, E90, E413, ULC-S115, UL 1479/273
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 436138
- MPN: 7010401345
- UPC: 076308982034
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: 1/PK
-
Price:
- Add To Favorites

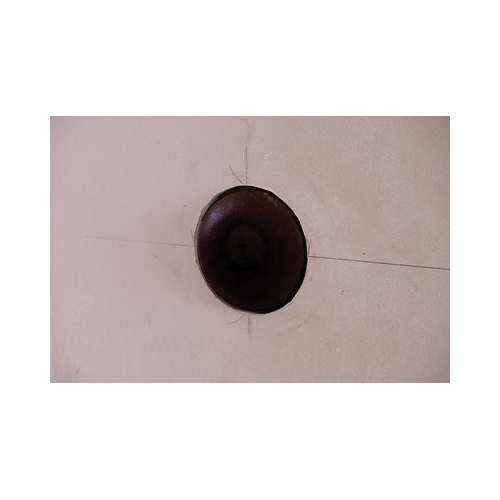

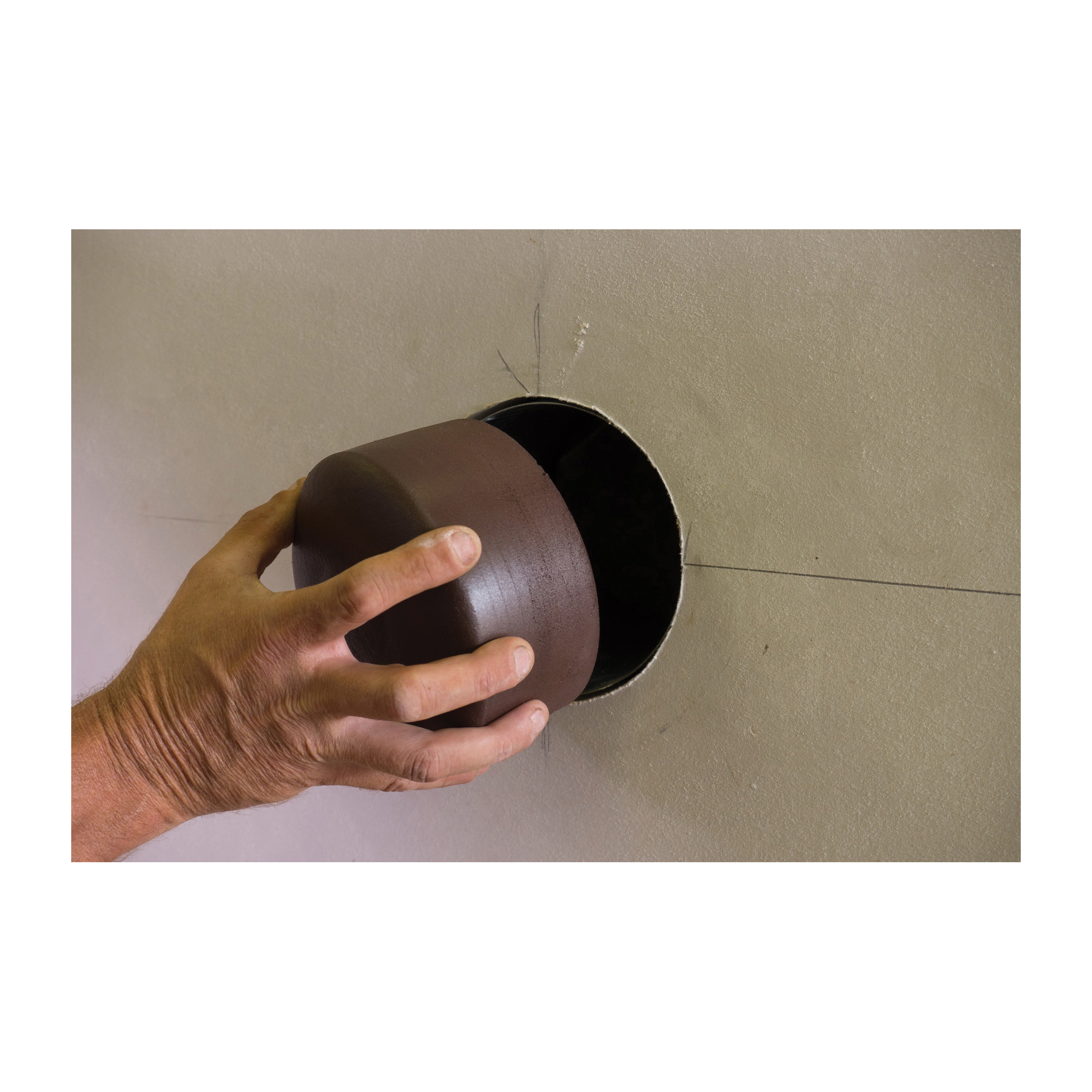

3M™ fire barrier plug is a replacement foam plug for 2 in round 3M™ fire barrier pass through device. This product works together with the device to help prevent the spread of smoke and fire. These foam plugs enhance the cold and hot smoke seal and help the system achieve UL classified L-rating.
3M™, 7010401345, Fire Barrier Plug, Specifications: Up to 2 hr Fire Rating, Specifications Met: ANSI Specified, ASTM E814, E84, E90, E413, ULC-S115, UL 1479/273, Foam, Maroon, 4 in Dia x 3-1/8 in H Dimensions
| Color | : | Maroon |
| Dimensions | : | 4 in Dia x 3-1/8 in H |
| Material | : | Foam |
| Specifications Met | : | ANSI Specified, ASTM E814, E84, E90, E413, ULC-S115, UL 1479/273 |
| Specifications | : | Up to 2 hr Fire Rating |
- Enhance cold and hot smoke seal
- Plays apart in a system that allows pass through device to achieve ul classified l-rating
- Re-enterable/repairable
- Fully reusable
- Easy to install - saves time and labor
- Paintable with primer
- No cure time
- Works with 2 in round 3M fire barrier pass-through device to help prevent the spread of smoke and fire
- Foam plugs are part of a hassle-free firestop method
