3M™ 7010398509 Flame-Retardant Displacement Connector, 18 to 16 AWG/14 AWG Stranded Wire
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437216
- MPN: 7010398509
- UPC: 054007501886
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: EACH
-
Price:
- Add To Favorites

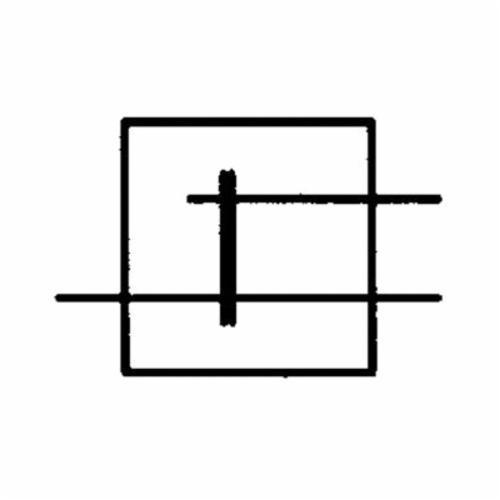

3M™ Scotchlok™ insulation displacement connector 804 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated, self stripping and offers a moisture-resistant seal.
3M™, 7010398509, Displacement Connector, Flame-Retardant, 18 to 16 AWG/14 AWG Stranded Wire, 600 VAC, Specifications: 0.145 in Max Insulation Dia, 194 deg F, Blue
| Color | : | Blue |
| Specifications | : | 0.145 in Max Insulation Dia |
| Temperature Rating | : | 194 deg F |
| Type | : | Flame-Retardant |
| Voltage Rating | : | 600 VAC |
| Wire Size | : | 18 to 16 AWG/14 AWG Stranded |
- Use to electrically connect a (tap) wire end to a through (run) wire, insulate and provide a moisture-resistant seal for the connection
- The suggested application tool for this connector is the e-9bm crimping tool
- Independently crimps the barrel and grip on insulated and non-insulated terminals and connectors
- Use for control circuits, fixtures, appliances, signals, pa systems and automotive/marine/rv wiring
- Operating temperature 194f (90c)
- 600 v maximum building wire,
- 1000 v maximum signs and fixtures
