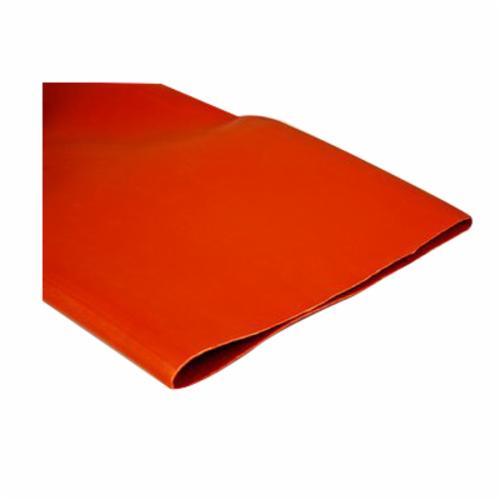

3M™ 7010348853 Busbar Heat Shrink Tube, 8.83 in ID Expanded, 3.78 in ID Recovered, 0.127 in THK Wall Recovered, 20 ft, 50 ft L, Cross Linked Polyolefin, Orange/Red

3M™ 7010348853 Busbar Heat Shrink Tube, 8.83 in ID Expanded, 3.78 in ID Recovered, 0.127 in THK Wall Recovered, 20 ft, 50 ft L, Cross Linked Polyolefin, Orange/Red

  • Manufacturer: 3M
  • Brand Name: 3M™
  • Part#: 437965
  • MPN: 7010348853
  • UPC: 051135358771
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

3M™ tubing BBI-A is made of specially-formulated, cross linked, flame-retardant, track-resistant polyolefin that will shrink to fit rectangular, square or round bus bars. BBI-A will handle voltage ranges from 600 vac to 35 kV, reducing your inventory requirements and saving you time and money. The BBI-A material has a high resistance to splitting, while providing the flexibility to conform to bends in certain applications. Superior split-resistance can prevent insulation failures and resulting downtimes. BBI-A is unaffected by normal cleaning fluids and is-resistant to physical damage. Good thermal endurance up to 230 deg f contributes to longer life and more stable performance. Excellent dielectric strength allows the required space between busbars and metal enclosures to be substantially reduced. closer spacing reduces both the overall size of the assembly and the overall cost.

ROLL OF 50 FEET 3M 7010348853 BUS BAR TUBING BBI-9A-5 O.D. 12.29 - 19.23 IN

Color      :      Orange/Red
Inner Diameter Expanded      :      8.83 in
Inner Diameter Recovered      :      3.78 in
Length      :      20 ft, 50 ft
Material      :      Cross Linked Polyolefin
Shrink Temperature      :      250 deg F
Temperature Rating      :      230 deg F
Type      :      Flame-Retardant
Voltage Rating      :      8/5/15/25 kVAC
Wall Thickness Recovered      :      0.127 in
  • Designed for insulating rectangular, square and round bus bar rated from 5 kV through 35 kv
  • It will also cover and insulate in-line bolted connections of rectangular busbars
  • The material has high resistance to splitting, good solvent resistance and excellent tracking resistance properties

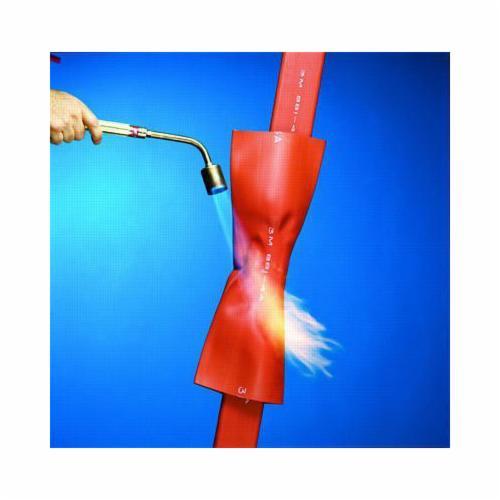

  • The tubing shrinks easily with industry standard methods, forming an aesthetically appealing insulation cover
  • Good thermal endurance
  • Unaffected by normal cleaning fluids and is-resistant to physical damage and high temperatures
  • Excellent split-resistance may prevent insulation failures and resulting downtimes
  • Closer spacing reduces both the overall size of the assembly and the overall cost
  • 550 v/mil dielectric strength
  • 2200 psi tensile strength
  • 400% elongation
  • Suitable for copper or aluminum bus bars, metal-enclosed bus bars, metal-clad switchgear and substation switchgear
  • Flame-retardant
  • Withstands temperatures of -67 to 230 deg f (-55 to 110 deg c)
