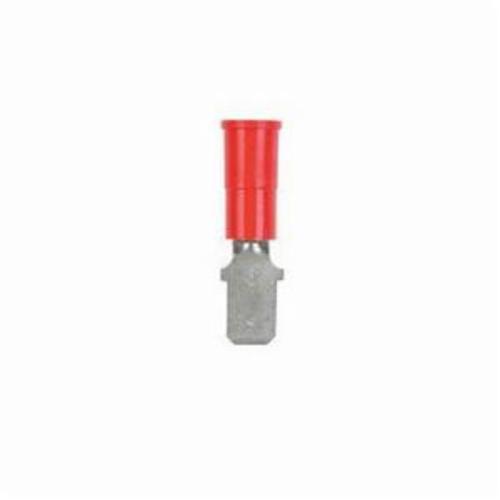

3M™ 7010321022 Insulated Male Disconnect, 22 to 18 AWG Conductor, 0.02 x 0.187 in Tab, Butted Barrel, Electrolytic Copper/Vinyl, Red
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437034
- MPN: 7010321022
- UPC: 051128600306
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: 25/BG
-
Price:
- Add To Favorites
3M™, 7010321022, Male Disconnect, Insulated, 22 to 18 AWG Conductor, 0.02 x 0.187 in Tab, Butted Barrel, Crimp Terminal, 600 VAC, Specifications: 0.95 in OAL, -40 to 221 deg F, Electrolytic Copper/Vinyl, Red, Tin Plated
| Barrel Type | : | Butted |
| Color | : | Red |
| Conductor Size | : | 22 to 18 AWG |
| Conductor Type | : | Copper |
| Finish | : | Tin Plated |
| Material | : | Electrolytic Copper/Vinyl |
| Specifications | : | 0.95 in OAL |
| Tab Size | : | 0.02 x 0.187 in |
| Temperature Rating | : | -40 to 221 deg F |
| Terminal Type | : | Crimp |
| Type | : | Insulated |
| Voltage Rating | : | 600 VAC |
- Standard vinyl insulation
- 0.24 in l x 0.065 in id barre
- This male disconnect terminal offers excellent holding force
