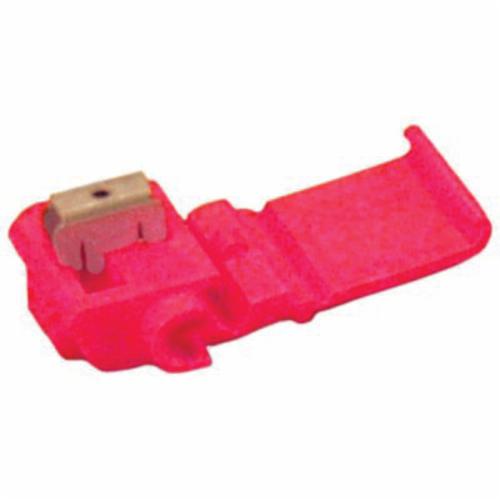

3M™ 7000148820 Flame-Retardant Moisture-Resistant Self-Stripping Electrical IDC, 22 to 16 AWG Wire

Identify the right wire size with ease when you use the 3M™ Scotchlok™ 557 IDC Pigtail Electrical Connector. Its color-coding offers a quick reference point, and it can hold solid or stranded wires ranging in size from 22 to 16 AWG. Tin-plated for corrosion resistance, the brass element of this connector provides good conductivity and creates a dual-element connection. This connector is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

3M™, 7000148820, Electrical IDC, Flame-Retardant Moisture-Resistant Self-Stripping, 22 to 16 AWG Wire, 600 VAC, Specifications: 0.12 in Dia Max Insulation, 221 deg F, Red

• The suggested application tool for this connector is the e-9bm crimping tool

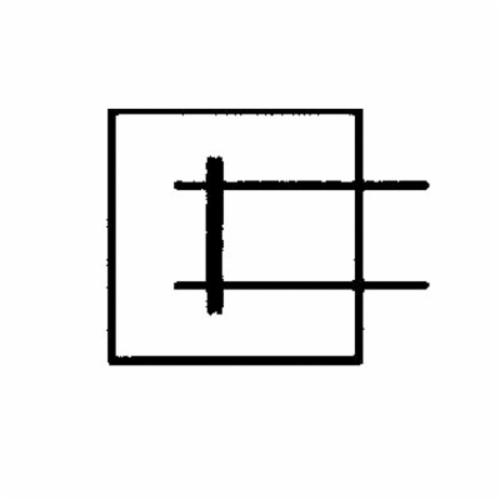

• Insulation displacement connector 557 provides a dual element connection
• The connector is polypropylene insulated and used to connect 2 wires while insulating the connection
• Intended for use with common thermoplastic insulated wire such as, t, tf, tff, tfn, tffn, awm, tew, sae gpt with a maximum insulation diameter of 3,5 mm
• Accommodates 22 to 16 awg solid/stranded

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4c5ee8f47c7c92ed5bc1e6978c9bd124b8aeb9a8b7eb8ad56363607e5b63365e.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_daaa9880b97225a69536dd81520b2e431005b609e64611999fad3dd61ce89eae.pdf
