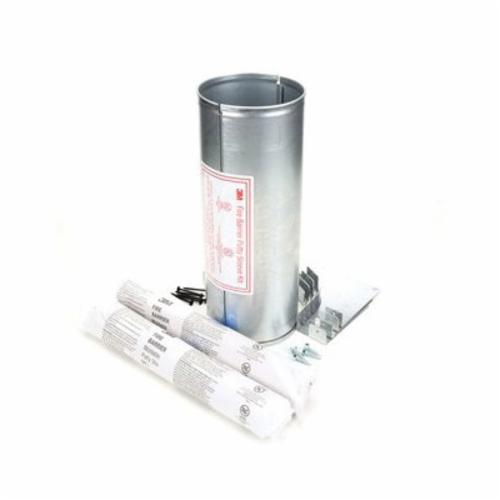

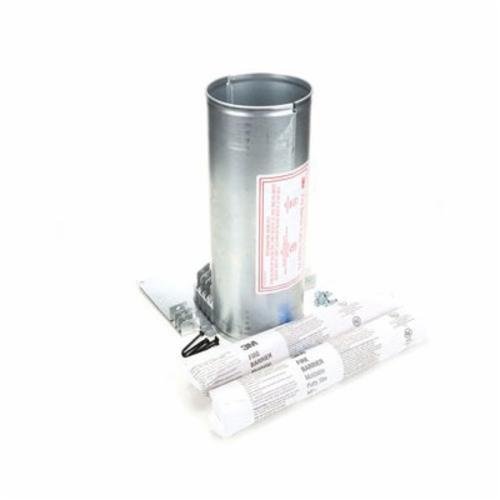

3M™ 7000145572 DT 100 Fire Barrier Sleeve Kit, ASTM E814, UL 1479

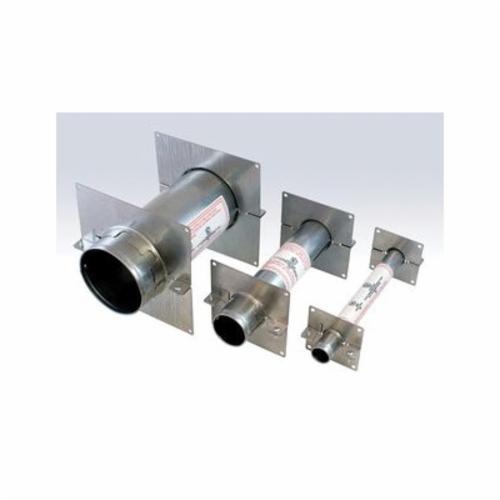

3M™ fire barrier putty sleeve kits are designed to help prevent the passage of fire and smoke in new or existing cable penetrations through walls or floors. These kits are tested up to 4 hr for fire-rated through-penetration systems (in accordance with ASTM E814). No gasket is required with this product and it allows for both new and retrofit data and telecom cable firestop installations.

3M™, 7000145572, Fire Barrier Sleeve Kit, Series: DT 100, Specifications: 3-3/8 x 3-3/8 in Flange, 1 in Dia x 12 in L Sleeve, 4 hr Fire Rating, Specifications Met: ASTM E814, UL 1479, Red Putty

• Ready to install kit for complete cable or blank firestop installation
• No gasket required to ease installation process
• Rolled out lip on sleeve allows for smooth cable entry
• Brackets and sleeve work in tandem to help prevent slipping during installation
• Allows for both new and retrofit data and telecom cable firestop installations
• Designed to help prevent the passage of fire and smoke in new or existing cable penetrations through walls or floors
