3M™ 7000140699 5740 1-Cable Cold Shrink In-Line Inline Splice, 5/8 kV, 350 to 1000 kcmil Conductor, 1 ft 3 in L Splice, EPDM Rubber
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437743
- MPN: 7000140699
- UPC: 054007494935
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: 1/KIT
-
Price:
- Add To Favorites

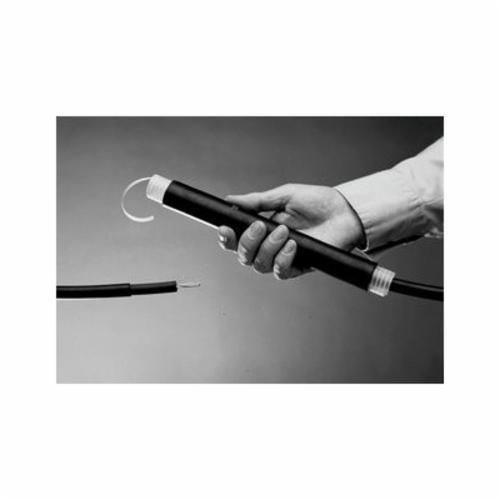

The 3M™ cold shrink splicing products are designed using the proprietary cold shrink delivery system developed by 3M™. Products are supplied prestretched on a removable core for efficiency and ease of installation. 3M™ cold shrink splices 5740 series are used for single conductor, non-shielded 5/8 kV cables. Each kit is a cold shrink design and contains enough material to insulate three splices. connectors are not included and must be ordered separately. Note: cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
3M™, 7000140699, Inline Splice, 1-Cable Cold Shrink In-Line, Series: 5740, 5/8 kV, Non-Shielded Cable, 350 to 1000 kcmil Conductor, 0.9 to 2.1 in OD Insulation, 1 ft 3 in Splice Length, 1 Conductors, 90 to 130 deg C, EPDM Rubber, Black
| Cable Type | : | Non-Shielded |
| Color | : | Black |
| Conductor Size | : | 350 to 1000 kcmil |
| Insulation Size | : | 0.9 to 2.1 in OD |
| Material | : | EPDM Rubber |
| Number of Conductors | : | 1 |
| Series | : | 5740 |
| Splice Length | : | 1 ft 3 in |
| Temperature Rating | : | 90 to 130 deg C |
| Type | : | 1-Cable Cold Shrink In-Line |
| Voltage Rating | : | 5/8 kV |
- Everything included to make 3 splices (except connectors)
- Cold shrink design no torches, heat guns or special tools required
- 1400 psi tensile strength
- 750% elongation
- 365 v/mil dielectric strength
- The rubber mastic filler removes time-consuming penciling of cable insulation
