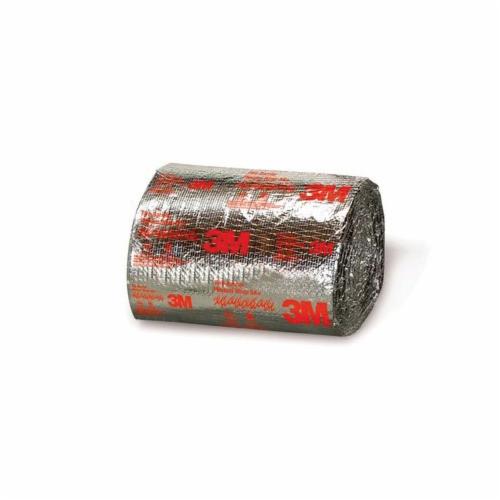

3M™ 7000133846 Fire Barrier Plenum Wrap, 50 ft L x 24 in W, ASTM E 84, ASTM E 136

Wrap and protect plastic pipes in plenum areas more easily with our 3M™ fire barrier plenum wrap 5a+ (PDF, 317.4 Kb). consisting of an inorganic fiber blanket encapsulated with a scrim-reinforced foil, this product is used to create a fire-resistive enclosure that can reduce the flame and smoke spread ratings to acceptable levels in return air plenums. We constructed this material to be a non-asbestos wrap with a 6 pcf (96 kg/m3) density. The strong, thin and lightweight product is extremely easy to manipulate and install, particularly around pipes and cabling. 3M™ fire barrier plenum wrap 5a+ is tested to UL 910 (NFPA 262), UL 1887 and ASTM E 84.

3M™, 7000133846, Plenum Wrap, Fire Barrier, 50 ft Length, 24 in Width, Specifications Met: ASTM E 84, ASTM E 136

• This product is engineered to create a fire-resistive enclosure that can reduce flame and smoke spread ratings to acceptable levels in return air plenums
• Full conformable coverage, provides a flexible, non-combustible enclosure for cables and pipes in return air plenums
• Product features, flexible, insulative, inorganic fiber wrap
• Non-asbestos, wrap is designed from non-asbestos material
• Foil scrim - features foil-encapsulated scrim

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1d9dbf2b45ece5374f86cafca019e4706d644d6cfd20d57fc2421205e1992a8b.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_361c86ead63680c1ccfc6b27fa9cc6cd87f3e91a2ab4970c79d3182fd7819bc7.pdf
