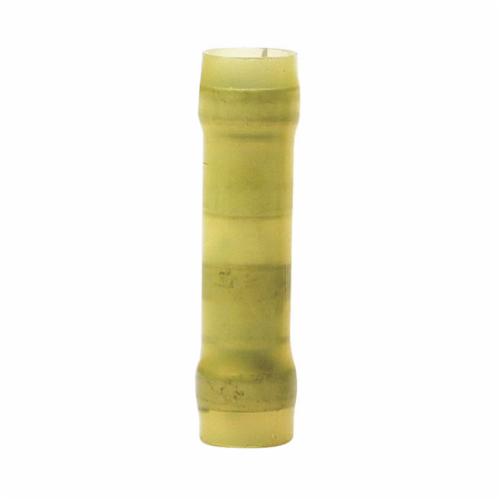

3M™ 7000133301 Insulated Butt Connector, 12 to 10 AWG Conductor, 1.15 in L, Butted Barrel, Copper/Nylon, Yellow

Identify wires and wire sizes quickly and easily with these 3M™ Scotchlok™ color coded Butt Connectors. The funnel-designed, seamless brass sleeve ensures wires glide effortlessly into the correct position, and the butted-seam barrel keeps electrical contacts secure and relieves mechanical stress at the point of insulation. The yellow connector is resistant to abrasions and cuts when working with sharp tools, and its insulated with durable nylon to withstand temperatures of -40 to 221 deg F (-40 to 105 deg C). This butt connector is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant for increased safety.

3M™, 7000133301, Butt Connector, Insulated, 12 to 10 AWG Conductor, 1.15 in Length, Butted Barrel, 0.135 in ID x 0.25 in L Barrel, 600 VAC, -40 to 221 deg F, Copper/Nylon, Yellow, 1/4 in Dimensions

• Must be crimped at both ends
• 0.04 in thickness
• Crimp connection, nylon insulation
• Funnel-designed, seamless brass sleeve offers easy insertion of wires
• Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Built-in wire stop for correct positioning
• Made of copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)

• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_746f9b858e7822487a7a45829f8f80bcce4153592651bce3d45d22734394be0a.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9e5a5fb76c99996a33a4881af27aad30554017c35db88945eec6ae0c0f2ba33a.pdf
