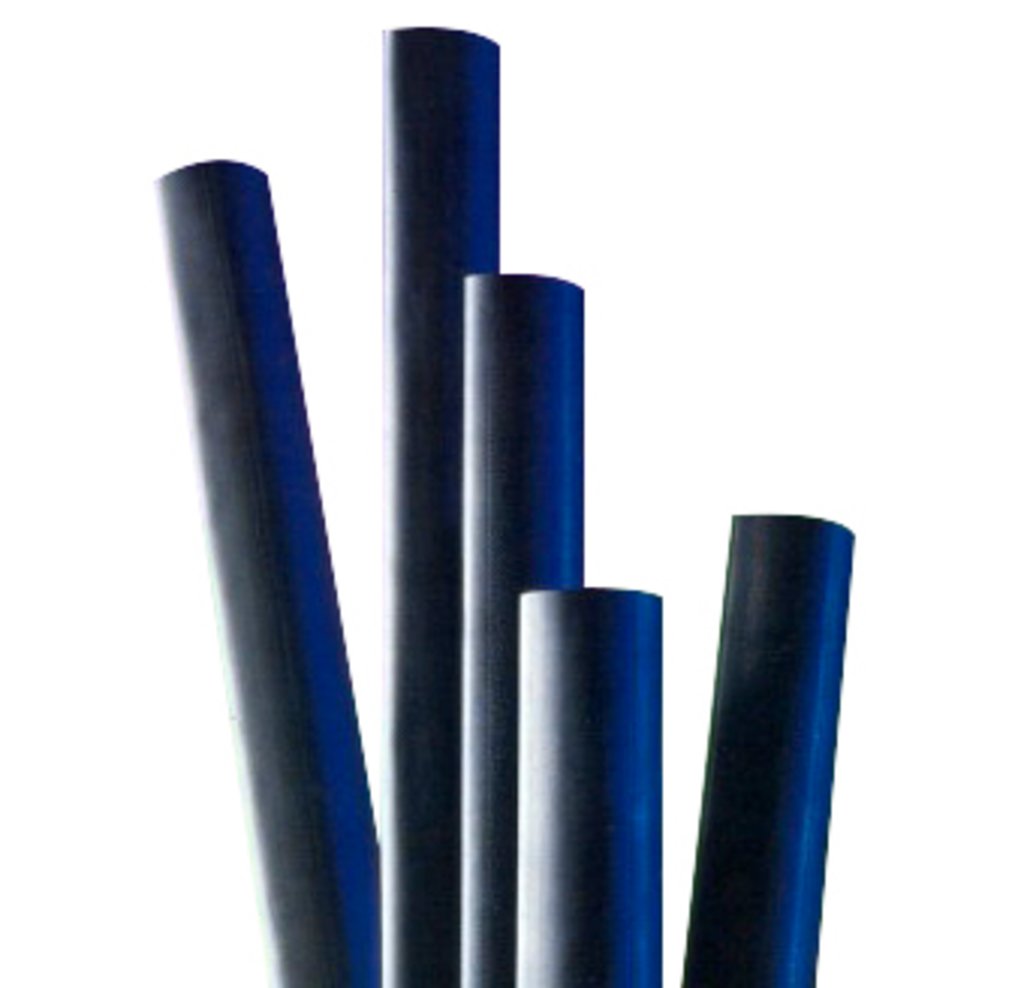

3M™ 7000132419 MDT Medium Wall Heat Shrink Tube, 1-1/2 in ID Expanded, 1/2 in ID Recovered, 48 in L, Polyolefin, Black
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437521
- MPN: 7000132419
- UPC: 054007406761
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
- Sold As: PIECE
-
Price:
- Add To Favorites
3M™ heat shrinkable medium wall cable sleeves MDT are flame retardant and protect against mechanical and environmental dangers, providing excellent abrasion, corrosion and chemical resistance. MDT sleeves have greater flexibility than the HDT, our heavy wall version. Installation of these fast shrinking sleeves is easy with little training necessary. The 48 in lengths are unprinted and come standard with a factory-applied adhesive/sealant, a thermoplastic material that remains flexible over long periods under adverse environmental conditions. During heating the sealant softens, bonds to underlying surfaces and fills small voids that might be present. Order in the size equivalent to expanded inside diameter required.
CASE OF 20 3M 7000132419 HEAT SHRINKABLE MEDIUM WALL POLYOLEFIN TUBING MDT-1500-48A
| Color | : | Black |
| Inner Diameter Expanded | : | 1-1/2 in |
| Inner Diameter Recovered | : | 1/2 in |
| Length | : | 48 in |
| Material | : | Polyolefin |
| Series | : | MDT |
| Shrink Ratio | : | 3:1 |
| Shrink Temperature | : | 250 deg F |
| Temperature Rating | : | -55 to 100 deg C |
| Type | : | Adhesive Lined Flame-Retardant Non-Corrosive |
| Voltage Rating | : | 1 kVAC |
| Wall Type | : | Heavy Duty |
| Wire Size | : | 1/0 AWG to 250 kcmil |
- 500 v/mil dielectric strength
- 2400 psi tensile strength
- 475% elongation
- Offers reliable performance for electrical splices, connections and terminations
- Suitable for large transitions, splices and battery cables
- Flame-retardant
- Withstands temperatures of -67 to 230 deg f (-55 to 110 deg c)
