3M™ 7000132288 85 Series 4-Way Multi-Mold Resin Splice Kit, 1 kV, 7/8 in Dia Cable, 2/0 AWG, 4/0 AWG Conductor, 8 in L Splice, Resin

3M™ Scotchcast™ multi mold resin splice kit 85 series includes a flexible film plastic mold, electrical insulating resin 2104, pressure sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, h tap or C-tap compression connectors, it provides inline, wye, X, butt and dead end splice configurations. It has a flexible film plastic mold with a built-in porous spacer web for ensuring proper thickness of insulating compound. The splice kit is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig ins.

3M™, 7000132288, Splice Kit, 4-Way Multi-Mold Resin, Series: 85 Series, 1 kV, Non-Shielded Cable, 7/8 in Diameter Cable, 2/0 AWG, 4/0 AWG Conductor, 7/8 in OD Insulation, 8 in Splice Length, Split Bolt H Tap or C Compression Connector, 90 to 130 deg C, Resin, Green

• Versatility designed into each kit accommodates a wide-range of cable size
• All materials provided to insulate and waterproof one splice, compound has low viscosity for fast, complete filling of splice and low exotherm which will not damage plastic insulated cable

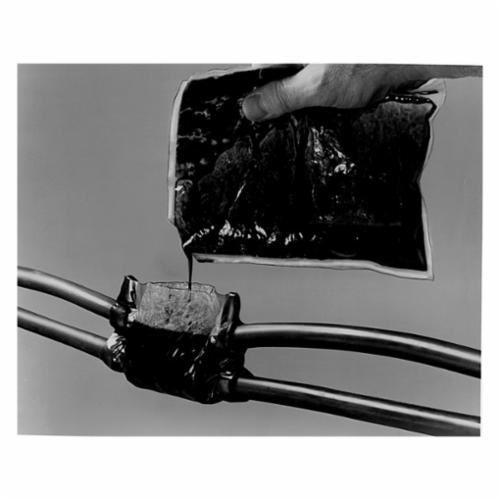

• 3M™ Scotchcast™ electrical insulating resin 2104 in a convenient closed mixing pouch permits clean
• Wraparound polyester film mold contains porous webbing which assures proper insulation spacing around splice and connector
• No special tools required, electrically insulates odd sized and odd shaped splices on cables
• Electrically insulates odd sized and odd shaped splices on cables
• Pliable plastic molds are formed around splices
• Rated for 1 kV cables
• 7-3/4 in spacer web, 0.85 sealing putty
• Accommodates 4/0 AWG stranded h or C-tap compression conductors
• 3-1/4 in max conductor size (height plus width)
• 4-1/2 in sheath opening length
• 444 psi tensile strength
• 98% elongation
• 524 V/mil dielectric strength
• 2/0 AWG, 4/0 AWG conductor size
• 7/16 in OD run/tap cable

• SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3fee6d000fdfe986dd5da7dc4ad09669b8d035162d41c59b6b58b8f88ff82434.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_474f6f7bdd9753eb37728be5b7618401ebd1cb67e28e2d250ad90dad362fa084.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e510dbd9f0862efe67a3d92a9d2e8b48774310b1a732f40210881493099a0779.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f0cacffeabfa390add750fb4b3d111352686e979cdcb6413c3c9eeffb4043c7d.pdf
