3M™ 7000059406 Fire Barrier Pass-Through Device, Round Shape, 4 in L x 2 in W x 10 in H, 3 hr Fire Rating, ASTM E814, ULC Listed, UL 1479

3M™ 7000059406 Fire Barrier Pass-Through Device, Round Shape, 4 in L x 2 in W x 10 in H, 3 hr Fire Rating, ASTM E814, ULC Listed, UL 1479

  • Manufacturer: 3M
  • Brand Name: 3M™
  • Part#: 436097
  • MPN: 7000059406
  • UPC: 051115165986
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

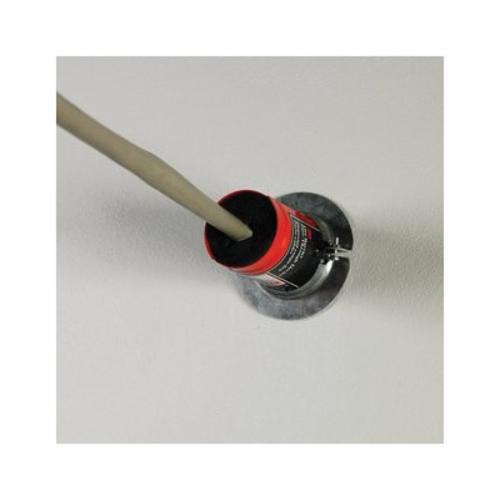

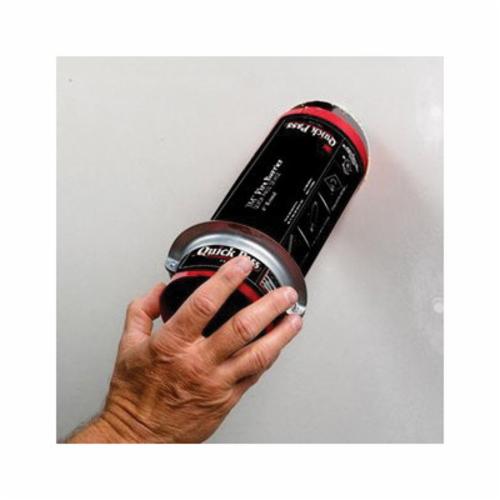

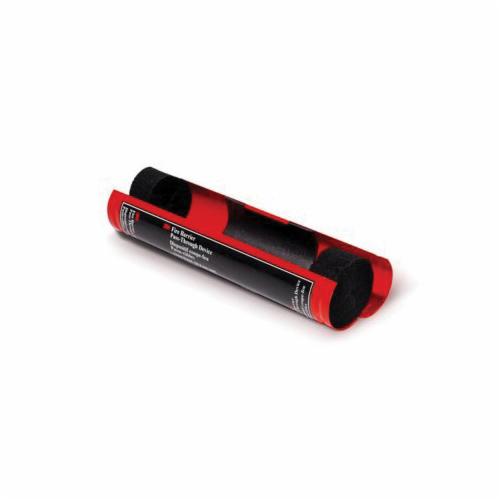

3M™ fire barrier pass through device round is an ideal firestop solution for through wall penetrations for cabling. This 1 piece, round, hinged metal enclosure features a combination of a fixed firestopping intumescent material and foam smoke seals at each end. The re-enterable device installs quickly and easily for new construction or retrofit applications. It is built for round openings, making it easy to slide into standard holes created by hole saws, masonry dry core or concrete wet core bits. It is suitable for blank penetrations or it hinges over existing cables. It can be secured using optional mounting brackets or firestop sealants (sold separately). When adding or removing cables in the penetration, technicians simply remove and reinstall the foam plugs instead of the entire device. This fire barrier pass through device is designed to provide years of dependable through-penetration firestopping with no reapplication or maintenance.

3M™, 7000059406, Fire Barrier Pass-Through Device, Round Shape, 4 in Length, 2 in Width, 10 in Height, Fire Rating: 3 hr, Specifications Met: ASTM E814, ULC Listed, UL 1479, Red

Color      :      Red
Fire Rating      :      3 hr
Height      :      10 in
Length      :      4 in
Shape      :      Round
Specifications Met      :      ASTM E814, ULC Listed, UL 1479
Width      :      2 in
  • Intumescent material and foam smoke seals provide lasting firestop protection
  • Re-enterable for high traffic areas or blank penetrations
  • Stackable for penetrant versatility
  • Can be used from 0 to 100% cable fill
  • Guide ramps inside devices help prevent cables or pipes from getting snagged during installation
  • One-piece, round hinged metal enclosure makes installation fast and easy
  • Round shape fits easily into standard hole saw, dry or wet core bit openings
