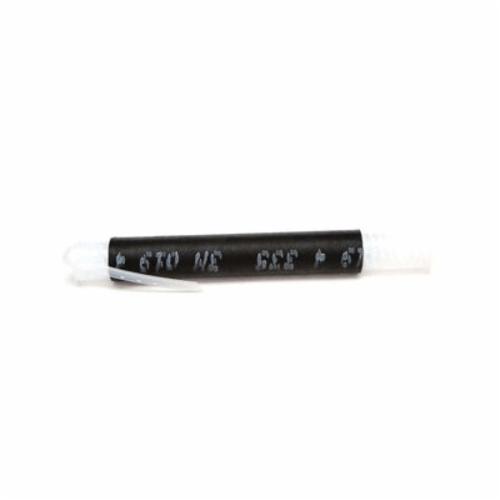

3M™ 7000058442 8420 Cold Shrink Insulator, 14.2 mm Dia Min, 48 mm Max Diameter, 152 mm L, 1400 psi Tensile Strength, EPDM Rubber Insulation

Insulate submersible or direct buried dig-in repairs and secondary splices with this 3M™ 8420 connector insulator. It provides physical protection of lugs or connectors that are air insulated and can be used on all solid dielectric cable splices and insulated wires. Use it for connectors and cables that have a diameter ranging between 0.31 to 0.56 in, and with conductors sized 6 to 4 AWG. The EPDM rubber construction is eco-friendly because its free of sulfur or chlorides. This cold shrink insulating product is ANSI certified and RoHS 2011/65/EU compliant for quality assurance.

3M™, 7000058442, Insulator, Cold Shrink, Series: 8420, 14.2 mm Diameter Minimum, 48 mm Diameter Maximum, 152 mm Length, 1400 psi Tensile Strength, Elongation: 7.5, 365 V/mil Dielectric Strength, EPDM Rubber Insulation, Black

• Simple installation, requires no tools and accommodates a wide range of cable sizes
• Copper conductor with polyolefin foam
• No torches or heat required, good thermal stability
• Seals tight, retains its resiliency and pressure even after prolonged years of aging and exposure
• Excellent wet electrical properties
• Resists acids and alkalis, resists ozone
• Physical protection and moisture sealing for air insulated connectors and lugs such as spacer cable and lug connections to bus bar
• Relocation of service, dig-in repairs, sheath repairs, environmental sealing for communication and other non-electrical applications
• Unishield®, wire shield, non-shielded, tape shield cable
• 6 to 4 awg conductor size
• Temperature range, withstands temperatures of -40 to 194 deg f (-40 to 90 deg c)
