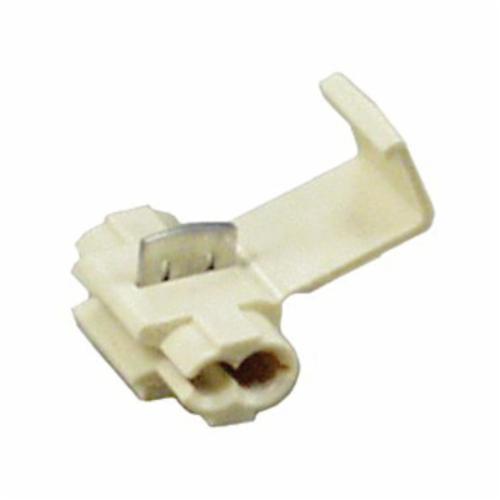

3M™ 7000005870 Electrical IDC, 18 to 14 AWG Wire

Use this 3M™ Scotchlok™ 564 IDC Double Run Electrical Connector for parallel splicing when you need a durable product that insulates the connection. It works with double run or tap connection types, and its made for use with applications that are in dry environments. The maximum insulation O.D. of this connector is 0.145 in. Its compatible with E-9BM Crimping Tool, which is used to crimp connectors with its strong adjustable metal jaws. The maximum recommended voltage rating for this connector is 32V; it accommodates wire gauge sizes ranging from 18 to 14 AWG. This product is RoHS 2011/65/EU Compliant, so you can trust in its quality.

CARTON OF 500 3M 7000005870 SCOTCHLOK ELECTRICAL IDC 564-BULK DOUBLE RUN WHITE 18-14 AWG

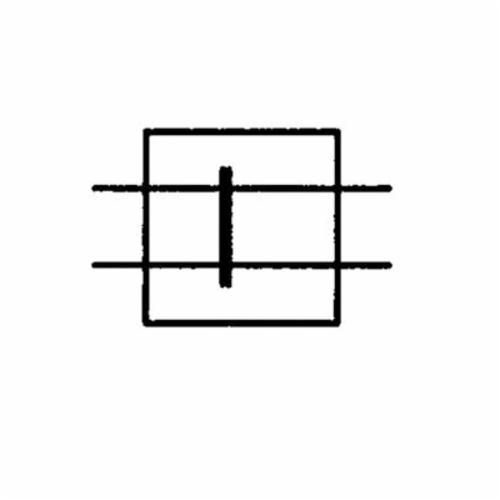

• Insulation displacement connector 564 is a double run connector for parallel splicing
• It electrically connects two run (through) wires while insulating the connection
• Polypropylene insulated and self stripping
• Use for control circuits, fixtures, appliances, signals, pa systems and automotive/marine/rv wiring
• Tin-plated brass element construction provides good conductivity and corrosion resistance
• Operating temperature 194f (90c)
• For industrial/occupational use only
• Not for consumer sale or use
• Accommodates 18 to 14 awg solid/stranded copper (tap) and 12 to 10 awg solid/stranded copper (run)
• 600 v maximum building wire,
• 1000 v maximum signs and fixtures

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3763f3d679bc4aec935c3fe0a8a414b74aa3df24d8af66a4112db2ba199846b8.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4c5ee8f47c7c92ed5bc1e6978c9bd124b8aeb9a8b7eb8ad56363607e5b63365e.pdf
